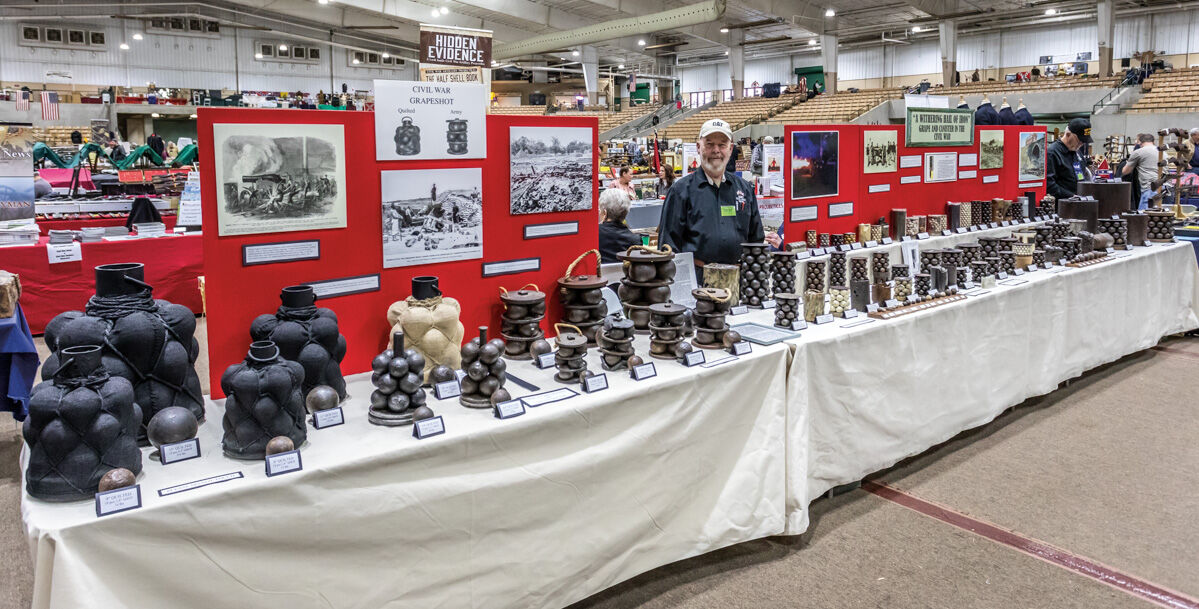

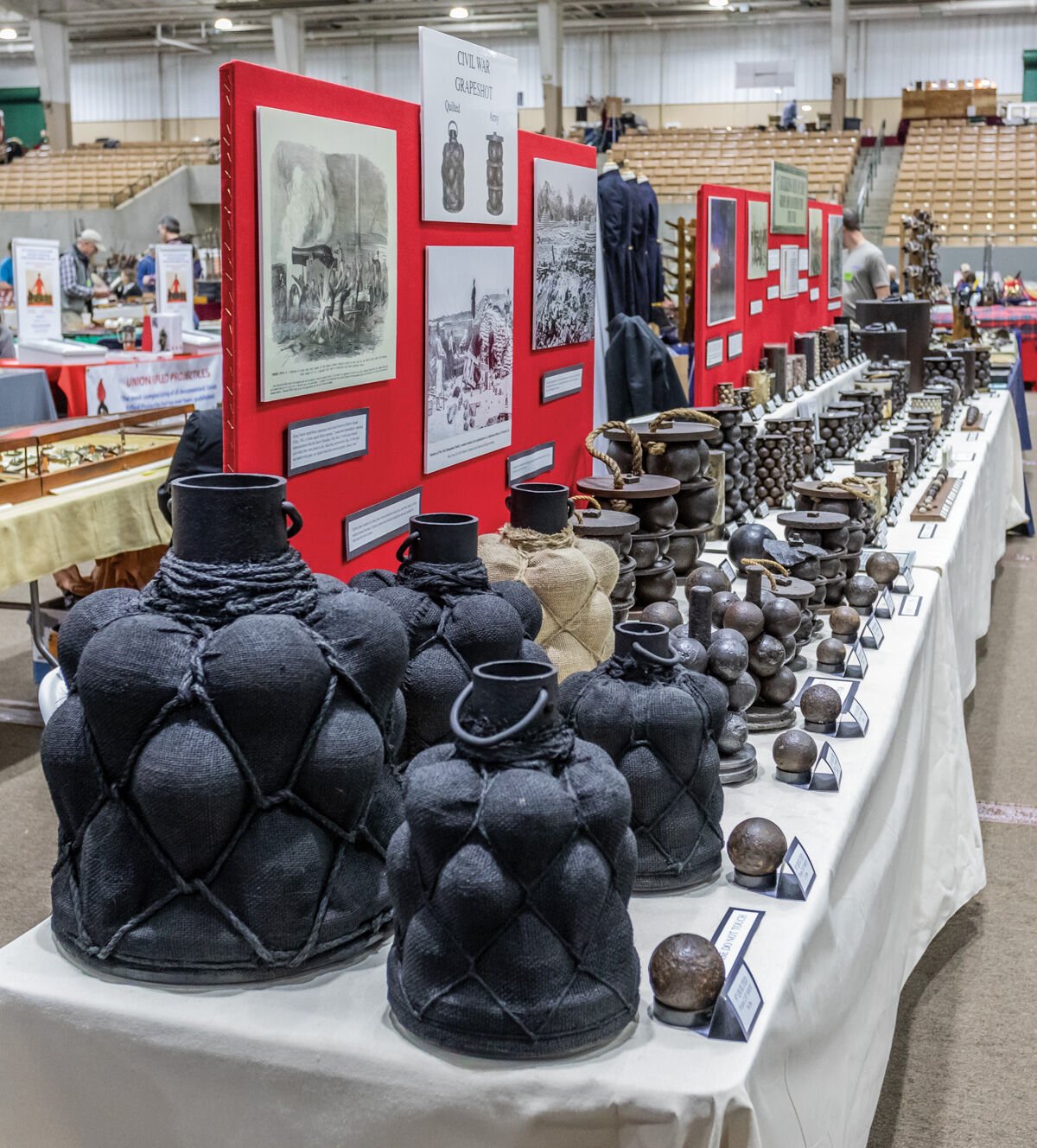

David Gotter standing with his impressive display of canister and stands of grape shot at the Middle Tennessee Show and Sale, Franklin, Tenn.

My first interest in the Civil War came in the early 1960’s with the 100th Anniversary. At the time, I was in my early teens and unaware of collectors or collecting opportunities in my part of Ohio, so I read everything I could on the subject. After college, I moved back to Ohio, to the Ashland/Mansfield area, and in 1977 I learned about the Ohio Civil War show. I missed the first one and missed another one a few years later. I haven’t missed one since.

My initial shell collection ranged from 6-pdr. cannonballs to 100-pdr. Parrott shells and about anything in between. In the late 1908s I purchased a 2.6-inch Wiard canister adding it to my collection. It’s difficult to imagine how many pieces a shell might burst into, but it’s not hard at all to imagine what’s going to happen when the artillery starts firing canister.

I started with a few of the basic rounds; 6-pdr., 12-pdr., and a few of the common rifle rounds; then I wanted more. At first I knew what calibers I didn’t have, which ones I wanted next, and began filling that list.

After I found most of the basic examples, the oddball ones usually weren’t available ready to buy and display. There were few reliable shell books, and even fewer with canister information in them, so I was pretty much on my own. I found a lot of parts in the “anything for a dollar” boxes on dealer tables, began buying parts, and learning what shot went with what plates. In those days, dealers and relic hunters were after shells, and canister parts were “scrap.” It has taken over 30 years to acquire 65 or so different canister specimens.

In the early 2010s, I decided to add stands of grape to my collection. I had pretty well exhausted canister as a pursuit; adding grape shows the difference between grape and canister. Army grape can be found from time to time, but quilted grape is almost impossible to find. I have two original quilted grape stands, a 6.4-inch and a 7-inch. The larger sizes are almost non-existent; the 15-inch, as far as I can learn, does not exist anywhere. I found the specifications and built one so that my collection was complete. With the addition of 14 stands of grape to the display, I have a total of 80 specimens, weighing around 1,500 pounds.

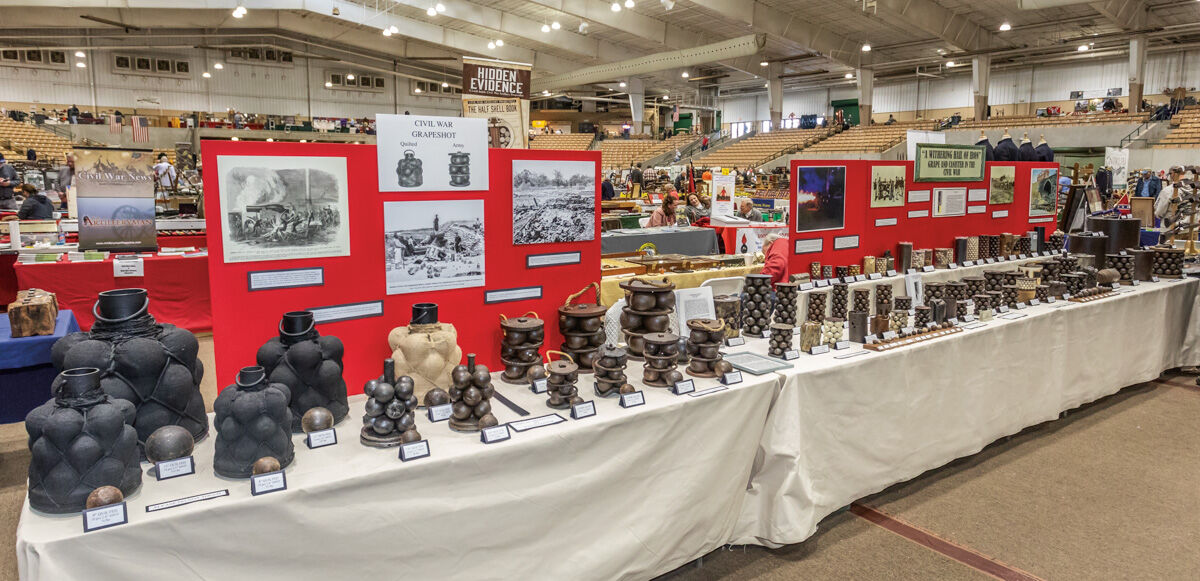

Gotter’s display of canister and stands of grape shot.

I believe this is the most complete collection of its type in existence, and at this time in the world of collecting, probably could not be duplicated. This collection is parts of all of us, and I owe a huge Thank You to all the collectors, dealers, relic hunters, and friends who supplied me with complete stands, parts, and assistance throughout the years.

Canister


Confederate 12-pounder Napoleon canister recovered from the Selma Arsenal site. Courtesy of Steve Phillips.

A canister round was a thin-walled metal cylinder packed with musket balls, or large lead or iron balls, and sawdust. Depending on bore diameter, typical Civil War canister shot was as small as .65 inch and as large as 2 inches. Some canister rounds have been found that were packed with nails, pieces of hinges, and other scrap metal. These unusual canisters are known as Langrage.

A round wooden block, or “sabot,” was attached to the bottom of the canister. The sabot helped to keep the round centered in the bore and also prevented the propellant gases from shooting out around the sides of the canister. Attached to the bottom of the sabot was the cloth bag that contained the powder that propelled the round. When the powder ignited, the force of the explosion would burst the can and the shot would spray out of the muzzle of the cannon with a murderous effect.

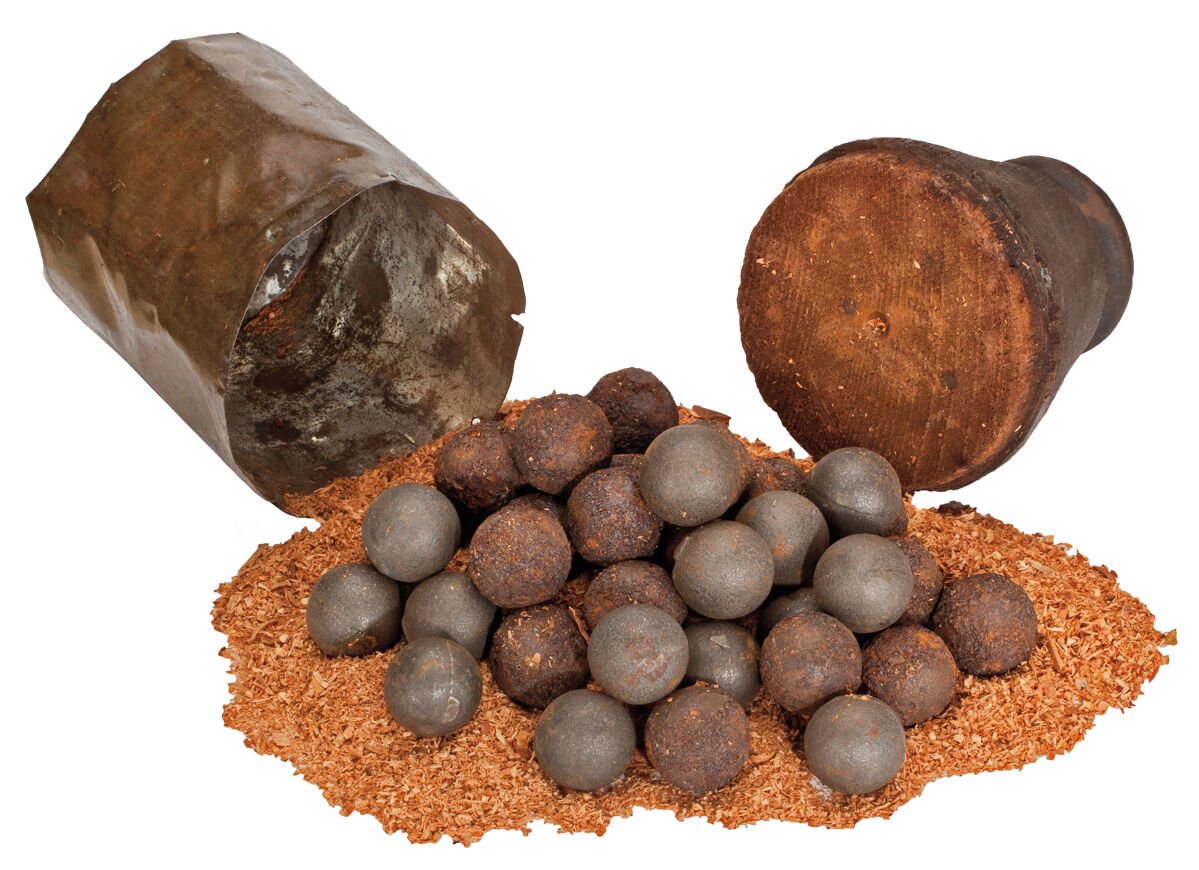

12-pounder Field Howitzer canister, disassembled view. Courtesy Atlanta History Center, Thomas Swift Dickey Sr. Collection.

Rate of fire depended on the type of weapon.

Field guns could be discharged, with careful aim, twice a minute, and when pressed, a good crew firing canister could double that rate.



Notable Quotes

When we ran out of canister, we resorted to the novel practice of leaving the fuses out of shells so that they burst at the muzzle. (Union artillery at Seven Pines)



There was nothing we dreaded more than charging into Yankee artillery, hub to hub, double shotted with canister. (diary excerpt, Confederate infantryman)



The enemy advanced against our guns, heads bowed and hands raised protectively in front of them, as if they could ward off the biting sleet of iron pellets. (diary excerpt, Union artilleryman)

“The enemy fell like grass before the mower.” “It seemed as if whole companies were wiped out of existence.” These quotes from Civil War soldiers are typical descriptions of the effect of canister. Canister was the artillerymans most lethal load and probably killed more Civil War soldiers than all other types of artillery rounds combined. Canister was only effective at short ranges, 400 yards or less, but like a blast from a giant sawed-off shotgun, the mass of slugs from the round would spread out and decimate everything downrange. When the enemy was within 150 yards, soldiers would load the guns with two or even three rounds of canister and fire them all at once.

Grape

Army stands of grape typically consisted of 2 iron plates, 9 iron shot, a center bolt and 2 iron rings. The shot were arranged in 3 layers, with the bolt and rings holding the layers of shot together. The diameter of the shot varied with the bore diameter of the cannon.

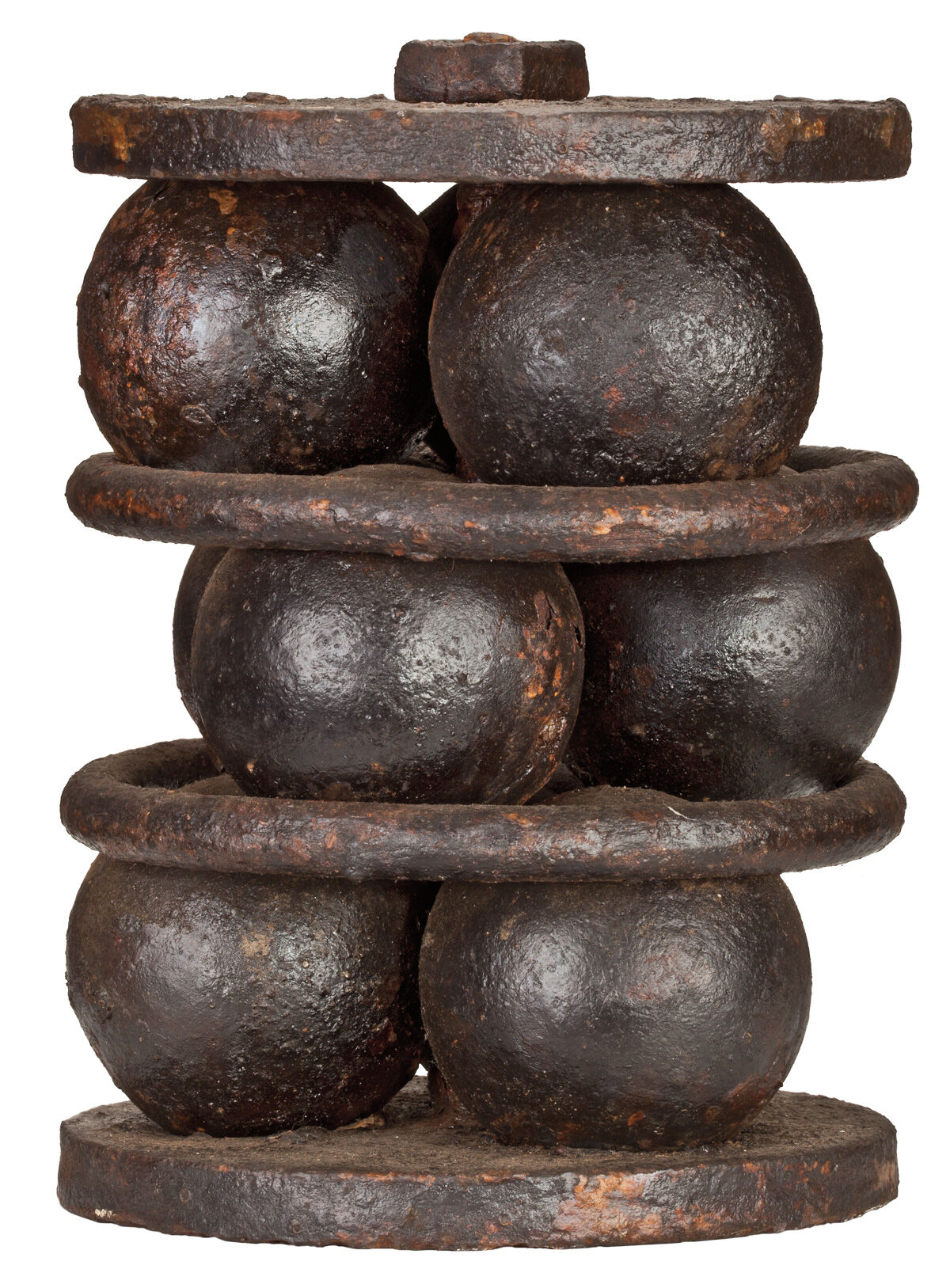

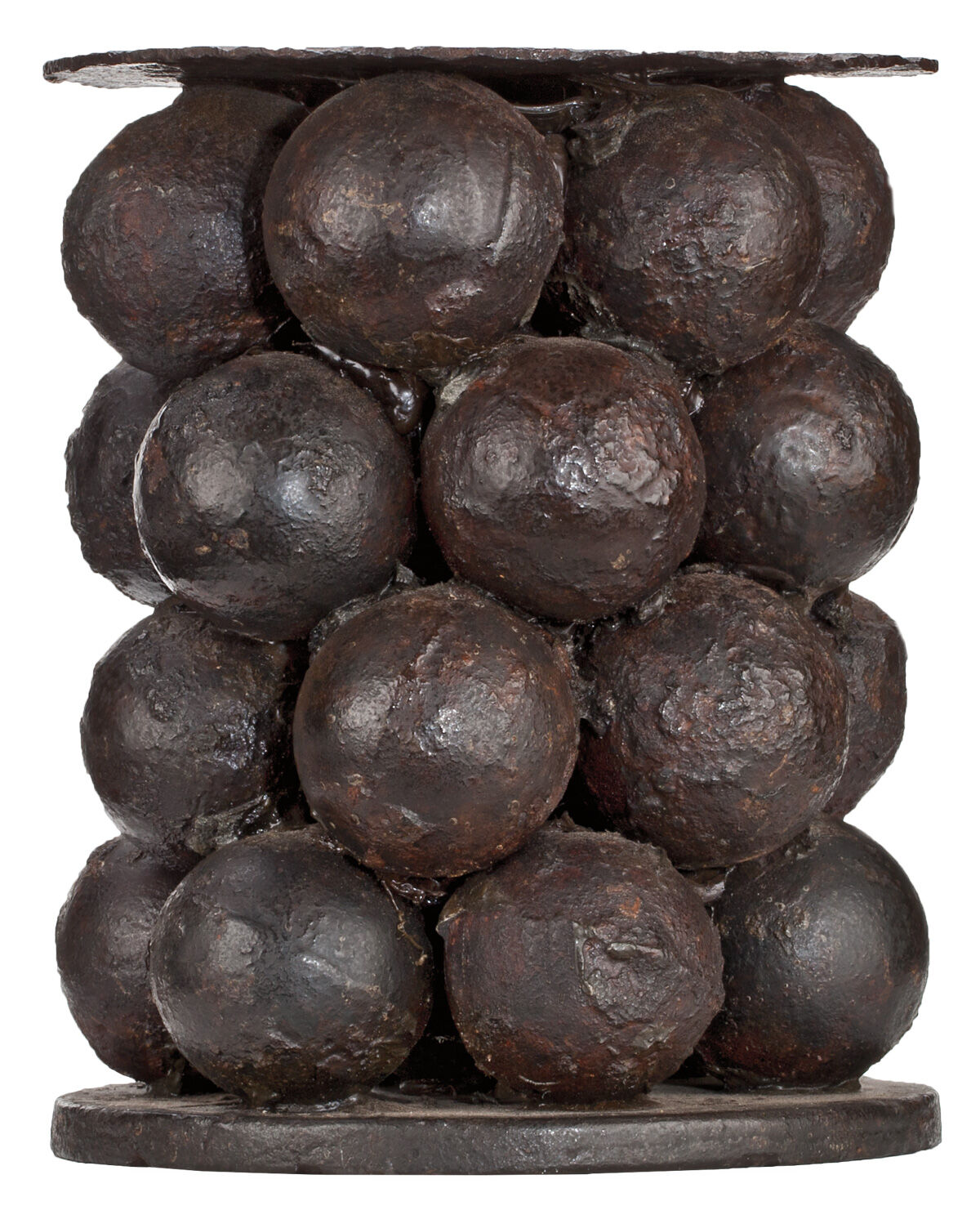

32-pounder stand of grape.

Quilted grape was generally used in the naval service, fired from ship to ship, and intended to sweep the decks, and damage masts and rigging. The shot in the stand was large enough to cause physical damage to the ship as well as members of the crew.

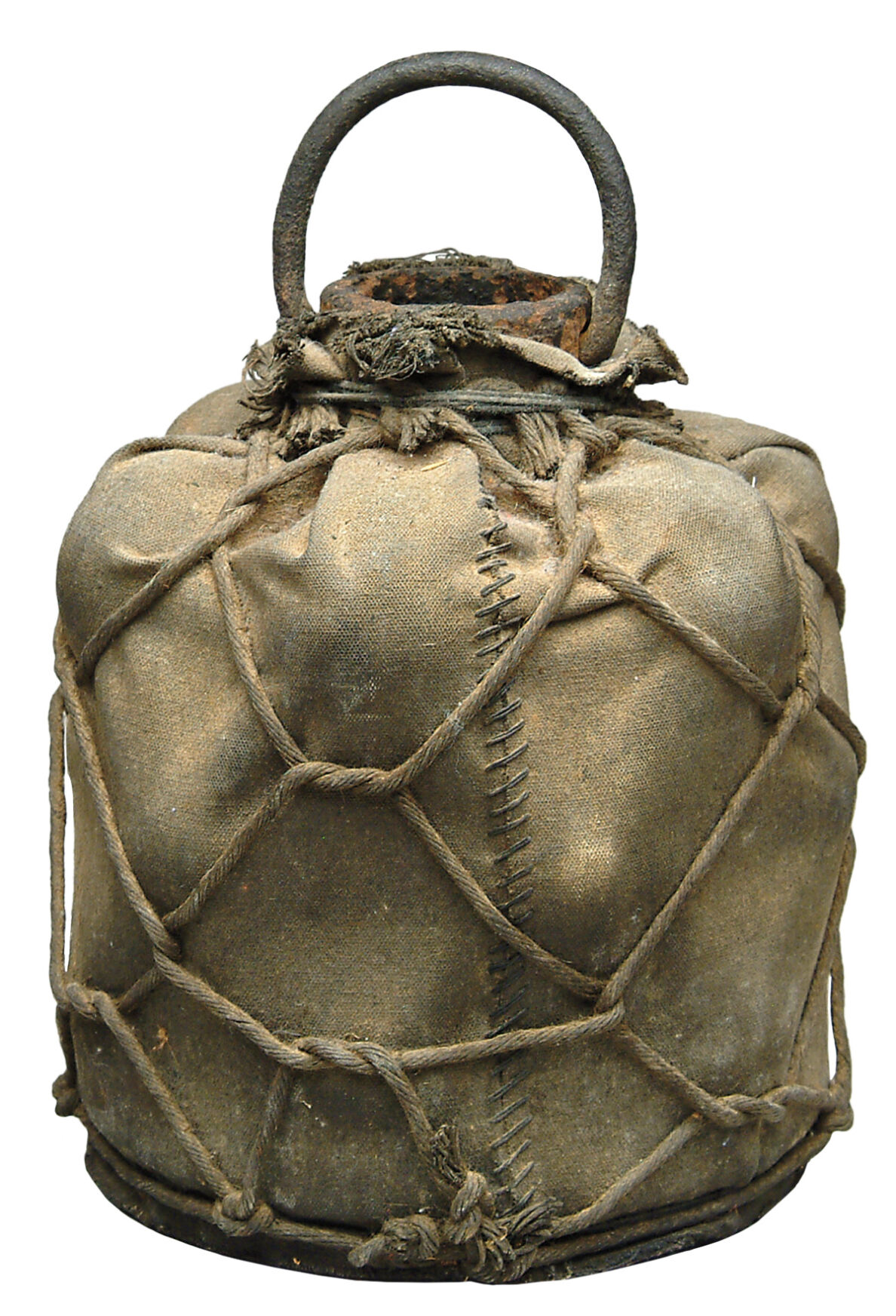

IX-inch Army Quilted Stand of Grape.

Quilted grape was constructed with a base plate and an attached center post. The shot were stacked in layers around the post and a canvas bag stitched around the shot to hold them in place and keep its round shape. Most stands of quilted grape used 3 layers with 5 or 6 shot per layer. Depending on bore diameter, typical Civil War grape shot was as small as 2 inches and as large as 4.5 inches.

Note: In the following table all shot diameters are ‘Nominal’ +/- .01-inch/.03-inch are encountered.

Rifle Canister

Cannon Bore Diameter

 Cannon – Rifled

Pattern

 # of Pieces

Diameter & Shot Material

 1.7-inch Whitworth?  24 .65-inch lead shot
 2.25-inch CS Mountain Rifle   27 .70-inch lead shot
 2.6-inch 6-pdr. Wiard Rifle Wiard 84 .65-inch lead shot
 2.6-inch 6-pdr. Wiard Rifle Wiard 27 .85-inch iron shot
 2.6-inch 6-pdr. Wiard Rifle Wiard 27 .85-inch lead shot
 3-inch Ordnance Rifle
 Absterdam   misc scrap steel
 3-inch  Ordnance Rifle Dyer 80 .65-inch x .75-inch lead slugs
 3-inch Ordnance Rifle Dyer 91 .65-inch lead shot
 3-inch Ordnance Rifle Dyer 156 .65-inch lead shot
 3-inch Ordnance Rifle Hotchkiss 156 .65-inch lead shot
 3-inch Ordnance Rifle Hotchkiss 110 .80-inch iron shot
 3-inch Ordnance Rifle Hotchkiss 55 .95-inch iron shot
 3-inch Ordnance Rifle Hotchkiss 28 1.15-inch iron shot
 3-inch Ordnance Rifle Sawyer rigid wall 156 .65-inch iron shot
 3-inch  US/CS Rifle   48  .95-inch iron shot
 3.3-inch CS Rifle   27 1.05-inch iron shot
 3.4-inch Dahlgren Rifle Sawyer 34 1-inch iron shot
 3.5-inch 12-pdr. Blakely Rifle Blakely 27 1.1-inch iron shot
 3.67-inch 20-pdr. Parrott Rifle Hotchkiss 55 1.15-inch iron shot
 3.67-inch 6-pdr. Sawyer Rifle Sawyer rigid wall 41 1-inch iron shot
 3.67-inch 6-pdr. Sawyer Rifle Sawyer accelerating 34 1-inch lead shot
 3.67-inch US/CS 20-pdr. Parrott Rifle  48 1.15-inch iron shot
 3.67-inch 12-pdr. Wiard Rifle Wiard 27 1.1-inch lead shot
 3.8-inch 14-pdr. James Rifle Dyer 27 1.2-inch lead shot
 3.8-inch 14-pdr. James Rifle James 27 1.2-inch iron shot
 3.8-inch 14-pdr. James Rifle Wiard 48 .85-inch lead shot
 4-inch Dahlgren Rifle  48 .95-inch iron shot
 4.2-inch 30-pdr. Parrott Rifle  48  1.3-inch iron shot
 4.5-inch  Siege Rifle  48 1.4-inch iron shot
 5.3-inch 60-pdr. Parrott Rifle  48 1.65-inch iron shot
 6.4-inch 100-pdr. Parrott Rifle  48 2-inch iron shot
 7-inch Brooke Rifle  114 1.3-inch iron shot


Smoothbore Canister

Cannon Bore Diameter

 Cannon – Smoothbore

Kind

 # of Pieces

Diameter & Shot Material

 2-inch Woodruff  41 .65-inch lead shot
 3.35–3.4-inch 4-pdr.  27 1-inch iron shot
 3.67-inch 6-pdr. – US/CS  27 & 28 1.15-inch iron shot
 3.67-inch  6-pdr. – CS  23 1.25-inch iron shot
 4.2-inch 9-pdr.  27 1.3-inch iron shot
 4.62-inch 12-pdr. Mountain Howitzer  148 .65-inch lead shot
 4.62-inch 12-pdr. Field Howitzer  48 1.05-inch iron shot
 4.62-inch 12-pdr. CS Howitzer  40 1.2-inch iron shot
 4.62-inch 12-pdr. US/CS Napoleon  27 1.5-inch iron shot
 4.62-inch 12-pdr. CS Napoleon Langrage  misc nuts & bolts
 5.3-inch 18-pdr.  27 1.65-inch iron shot
 5.82-inch 24-pdr. Gun  27 1.85-inch iron shot
 5.82-inch 24-pdr. Howitzer  48 1.3-inch iron shot
 5.82-inch 24-pdr. CS Howitzer  80 1.05-inch iron shot
 5.82-inch 24-pdr. CS Howitzer  38 1.5-inch iron shot
 6.4-inch  32-pdr. Gun  27 2-inch iron shot
 6.4-inch 32-pdr. Howitzer  48 1.5-inch iron shot
 6.4-inch 32-pdr. CS Langrage  misc nuts & bolts
 7-inch 42-pdr.  112 1.3-inch iron shot
 7-inch 42-pdr. Gun  27 2.25-inch iron shot
 7-inch 42-pdr. Gun Quilted 105 1.3-inch iron shot
 8-inch Howitzer  48 1.85-inch iron shot
 9-inch Dahlgren Shell Gun  231 1.3-inch iron shot
 10-inch Rodman  294 1.3-inch iron shot
 10-inch Columbiad CS  72 2-inch iron shot
 11-inch Dahlgren  315 1.3-inch iron shot
 15-inch Dahlgren or Rodman  600 1.3-inch iron shot


Stands of Grape

Cannon Bore Diameter

 Cannon – Smoothbore

Kind

 # of Pieces

Diameter & Shot Material

 4.62-inch 12-pdr. Army 9 2.05-inch iron shot
 5.3-inch  18-pdr.  Army 9 2.4-inch iron shot
 5.82-inch 24-pdr. Army 9 2.62-inch iron shot
 6.4-inch 32-pdr. Army 9 2.9-inch iron shot
 7-inch 42-pdr. Army 9 3.15-inch iron shot
 8-inch   Army 9 3.55-inch iron shot
 10-inch Columbiad or Rodman Army 9 4.55-inch iron shot


Quilted Stands of Grape

Cannon Bore Diameter

 Cannon – Smoothbore



 # of Pieces

Diameter & Shot Material

 6.4-inch 32-pdr.  12 2.5-inch iron shot
 7-inch 42-pdr.    15 2.3-inch iron shot
 8-inch Gun   18 2.5-inch iron shot
 9-inch  Dahlgren Shell Gun   18 2.8-inch iron shot
 10-inch Columbiad or Rodman   15 3.35-inch iron shot
 11-inch  Dahlgren   15 3.55-inch iron shot
 15-inch Dahlgren or Rodman   18  4.55-inch iron shot

Want to subscribe to Civil War News, Artilleryman magazine, or the Military Antique Collector magazine? Click here to go to the subscription page.

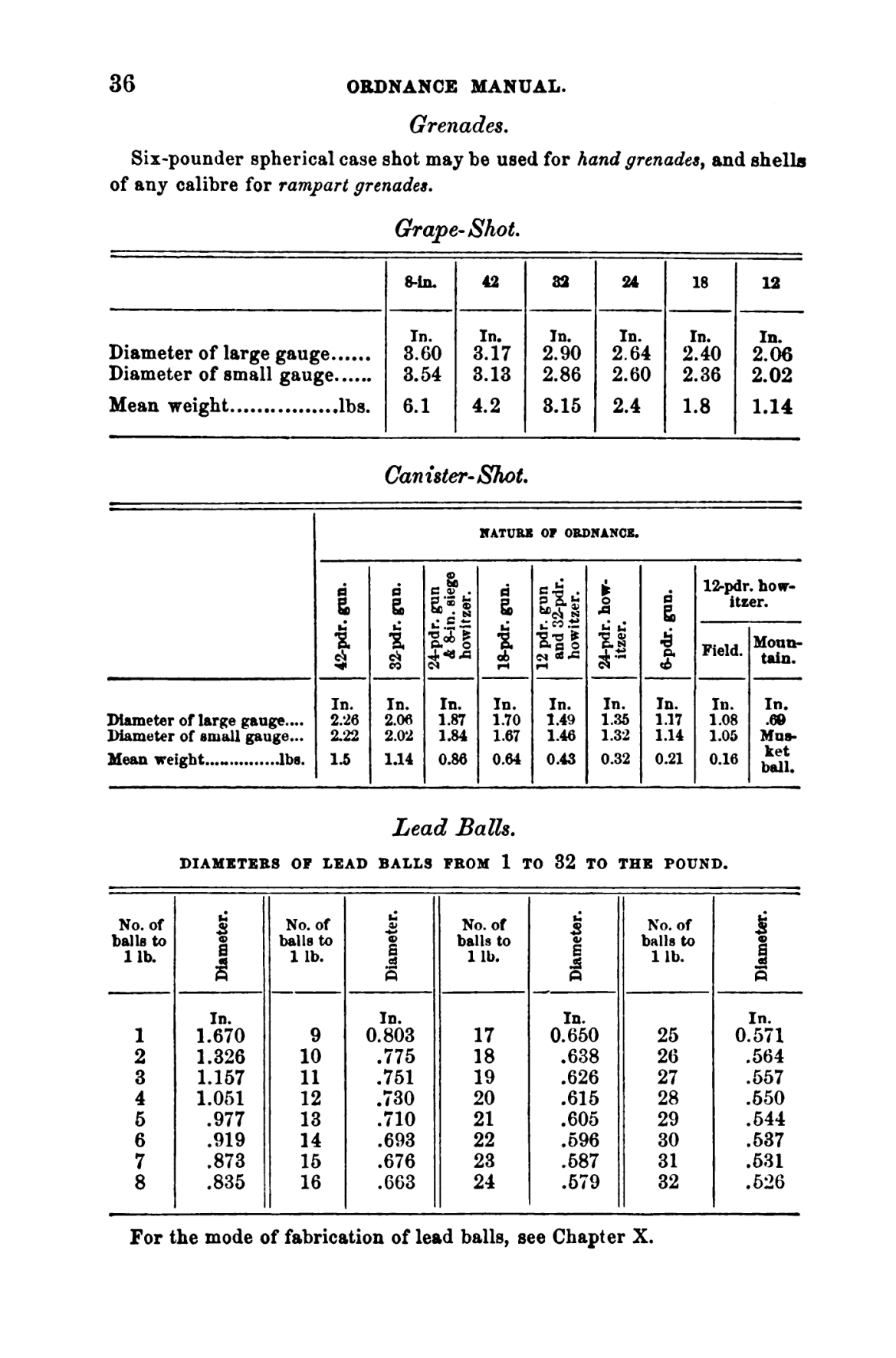

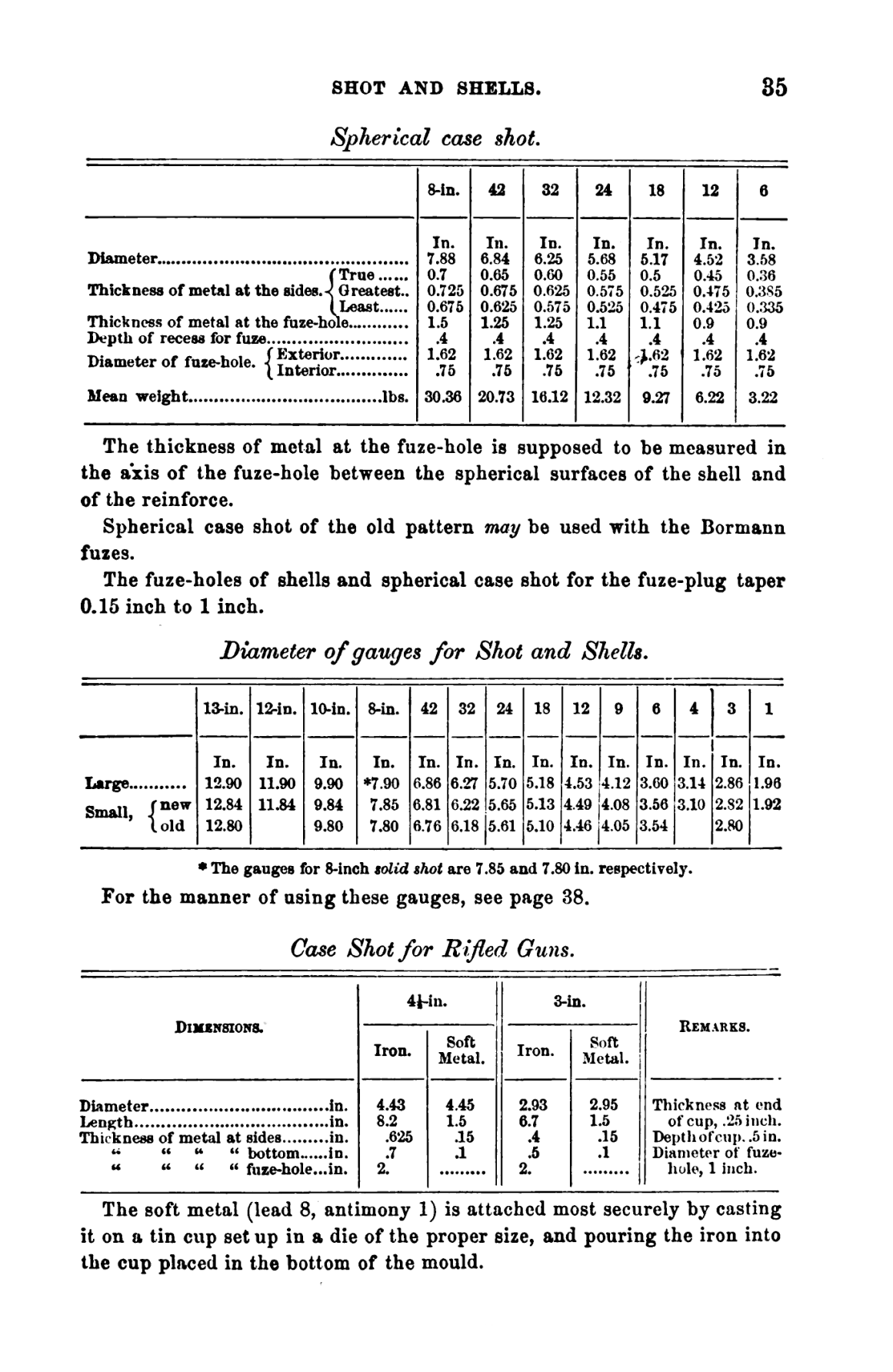

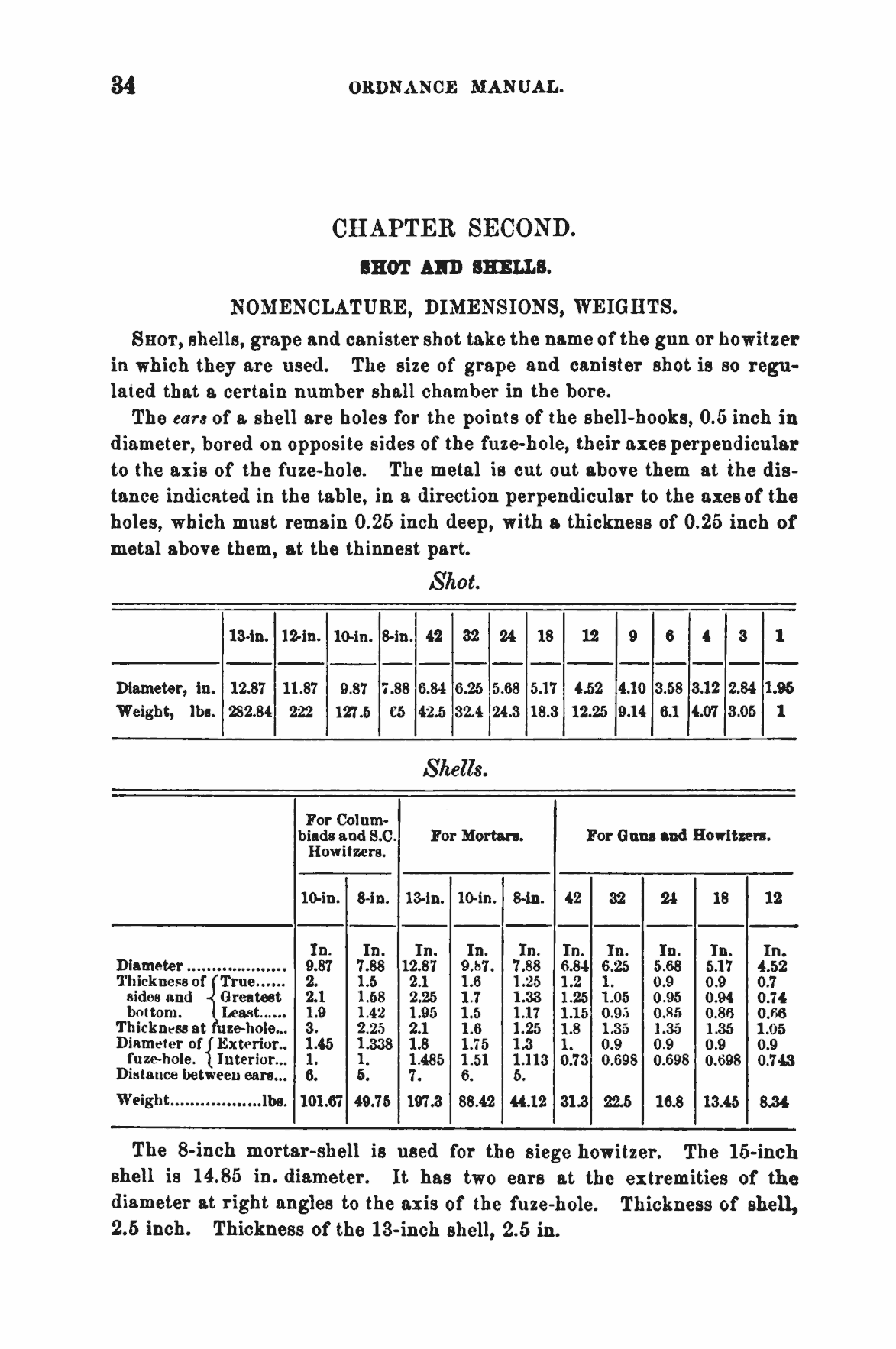

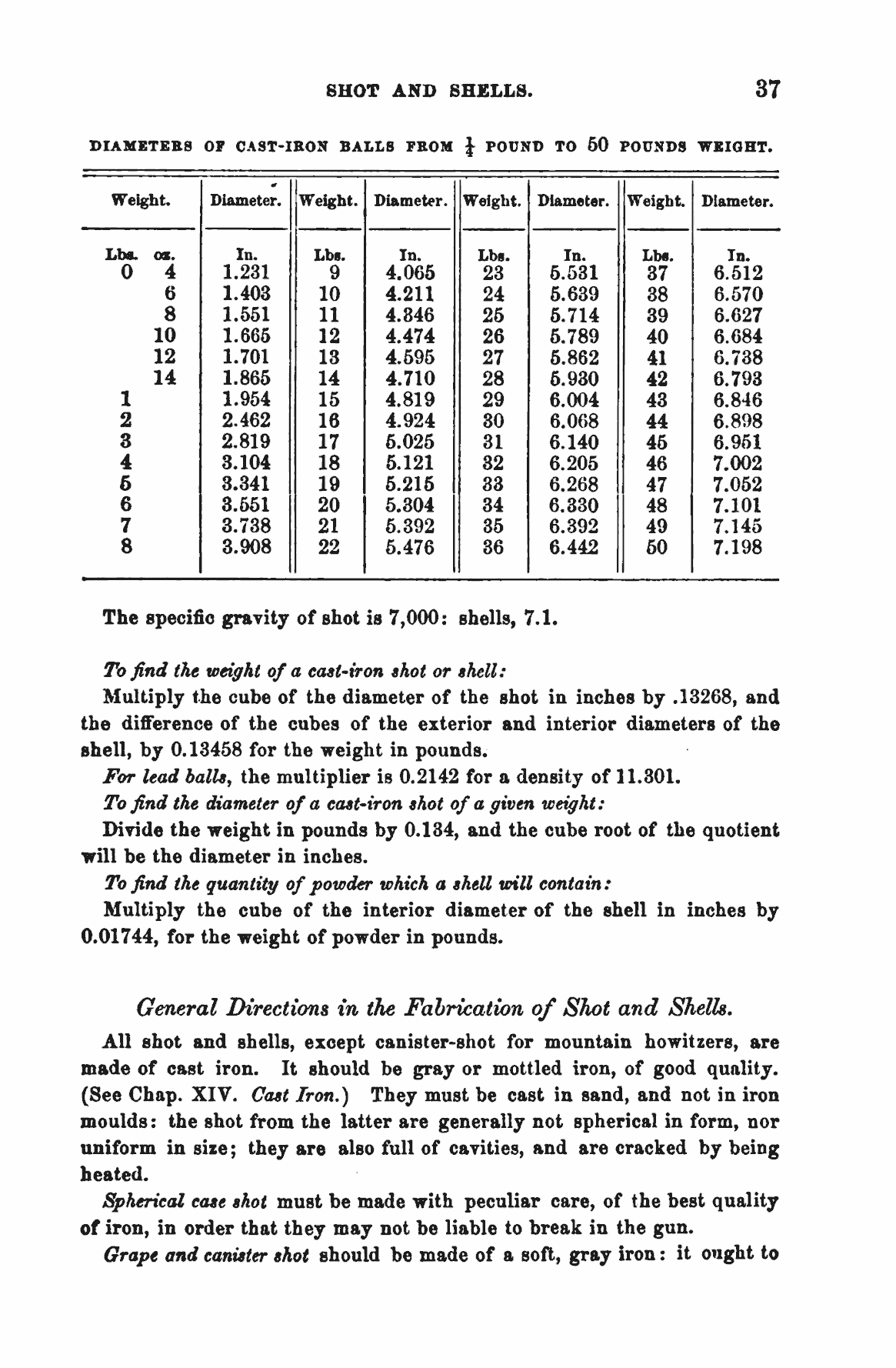

Shot Tables below from the 1862 U.S. Ordnance Manual.

The Ordnance Manual for the Use of the Officers of the United States Army. United States: J.B. Lippincott & Company, 1862.

Click on the image to enlarge the tables.


David Gotter’s display “A Withering Hail of Iron” Grape and Canister in the Civil War won Best of Show at Mike Kent’s Franklin Civil War Show, Dec. 1-2, 2018.
